When the simulation enters a subprocess, it automatically drills down to it and continues the simulation in the lower level. In QPR Modeling Client, measure values for a subprocess can be automatically calculated from the model elements in the child diagram.
Exercise 88: Set the subprocess calculation method for the measure Processing Time in the simulation.
 | 1. Open the Simulation - Business Process model. |

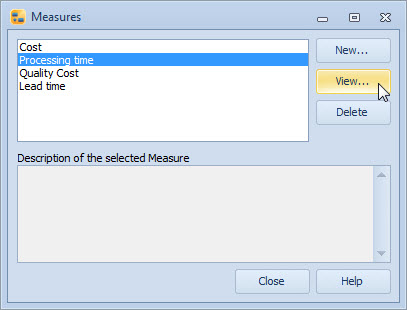

| 2. On the Model tab of the ribbon, click Model Elements and select Measures... from the drop-down list. The Measures dialog will open. |
| 3. Select Processing time and click View... |
| 4. Select Pick Maximum as the Subprocess Calculation Method: |
| 5. Click OK to close the dialog. |
For more information, see the Measures topic and its subtopics in QPR Modeling Client - User's Guide.
